AR mosfet

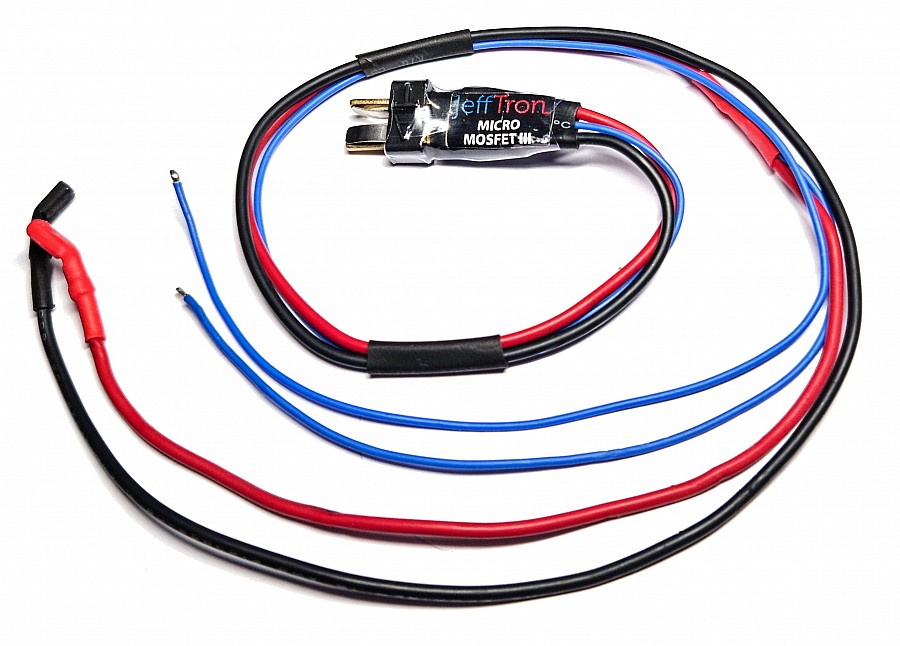

Complete wiring is designed for airsoft replica AR15 with battery in the stock.
Everything is ready, just solder the loose wires to the original trigger contacts in the gun.
The Micro mosfet III is integrated into the DeanT connector so it takes up minimal space.

MOSFET BENEFITS:
- Increases gun rate of fire and battery holds longer, than with basic wiring.
- Designed for spring up to M170 (equivalent for current 90A single shot fire or 35A burst fire for max. 30s).
- Specified for common batteries up to 17V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)
- No current consumption in the idle mode
- No sparking on switch contacts
- Board covered by conformal coating, it protect it against water

SPECIFICATIONS:
- AR mosfet is suitable for installation with original V2 contacts in AR15, M4, SR25, MP5 or G3 airsoft gun
- The complete wiring allows quick and easy installation into the weapon, it is designed for all types of AR weapons with the battery located in the stock
- There are high quality powerwires 1,5 qmm (AWG16) with with thin and hard PTFE insulation and signal blue wire 0.34 qmm (AWG22) with PTFE insulation
- In auto fire mode piston stops in random position due the gearbox design
- For right function is necessary to have a functional gearbox cut off lever, selector plate, reverse latch, trigger and trigger block, as it has the standard gearbox

DEVICE INSTRUCTIONS: you can download installation manual in English here [PDF, 642.22 kB]

PACKING:
- Micro mosfet III soldered on T-Plug connector with complete wiring for battery in stock for AR15, M4, SR25, MP5 or G3 airsoft gun
- Installation manual in English

ALTERNATIVES:
- More features with settings via app in the smartphone Leviathan-V2 optical
- Fully integrated Mosfet-V2 inside the gearbox version 2 instead of the original trigger contacts
- Fully integrated Active brake-V2 inside the gearbox version 2 instead of the original trigger contacts
- If you want to use your own wires, choose Micro mosfet III without wiring
- If you need a different wire length, select Micro mosfet II with wiring
- For higher loads and RoF, please choose Mosfet II or its variant with wiring

WARNING:
Installation of this device leave to the expert, who could solder and disassemble airsoft gun. Never use a soldering gun!
We can't guarantee 100% compatibility with all gearboxes, but AR mosfet will fit into standard and common brand's gearboxes without modifications.

WIRING CONNECTION INTO THE GUN:
