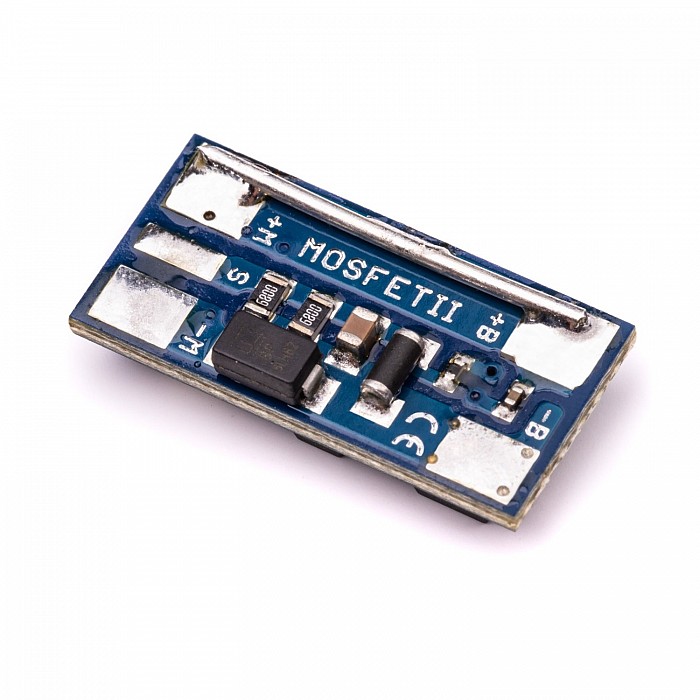

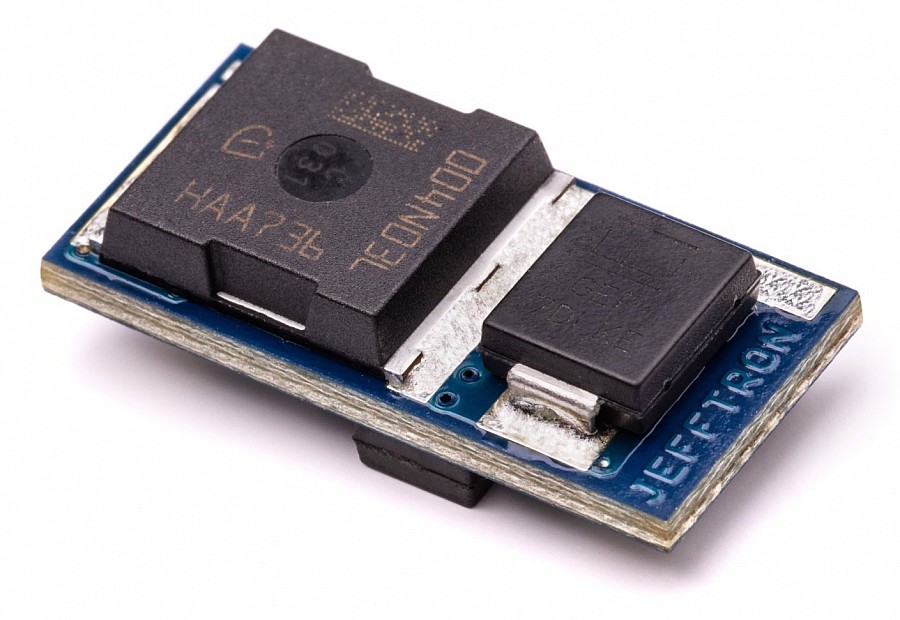

Mosfet II

Professionally made mosfet designed for airsoft electric guns (AEG).
Device increases gun rate of fire and battery holds longer, than with basic wiring.

SPECIFICATIONS:
- Very small device dimension, it fits nearly everywhere
- Devices without wires, you can use max. 1,5qmm (AWG16) power wires and 0,5qmm (AWG20) signal wires
- Suitable for service center, if you are not familiar with soldering to the circuit board, choose device with wiring and accessories
- Designed for spring up to M210 (equivalent for current 150A single shot fire or 50A burst fire for max. 30s)
- Specified for common batteries up to 17V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)
- 6 wires connection
- Device size 25x12x7mm
- No current consumption in the idle mode
- No sparking on switch contacts
- In auto fire mode piston stops in random position due the mechabox design
- For right function is necessary to have a functional gearbox cut off lever, selector plate, reverse latch, trigger and trigger block, as it has the standard gearbox

DEVICE INSTRUCTIONS: you can download installation manual in English here [PDF, 725.46 kB]
PACKING: device, heat shrink tube and installation manual in English

WARNING: Installation of this device leave to expert, who could solder and disassemble airsoft gun. Never user soldering gun!

WIRING CONNECTION INTO THE GUN:

Modified connection diagram for weapon AUG or P90
