Scylla - V2 to front

New product

Scylla - V2 to front

Product code: JT-SC-V2F

EAN: 0750122153701

94.98 € incl. VAT
(78.50 € w/o VAT)

Can be preordered - expected 30. 09. 2024

Description
Main Functions
Specifications
Links

The Scylla - V2 optical is advanced ETU (electronic trigger unit) on the market

It combines optical and magnetic sensors for better handling and durability

Built-in wireless communication for quick setup using iOS or Android smartphones!

Adapter with magnet is attached on the trigger so you can adjust its sensitivity conveniently from the app

The Scylla offers everything you would expect from a processor unit: binary trigger, burst fire, trigger sensitivity, rate of fire reduction, piston precocking, Li-Po alarm, statistics and much more

Real time response for change settings -> immediately test result

Easy installation into the gearbox (fully integrated inside the gearbox instead of the original trigger contacts)

New functions are for free for every user via online update

The Scylla - V2 brings everything important for your gun!

Scylla – V2 supports these airsoft guns:

M4, M16, HK416, AR15 with V2 gearbox according to TM design
M4 with V2 gearbox from Krytac company
SR25 with V2 gearbox according to TM design
ICS SSS gearbox V2
MP5 with V2 gearbox according to TM design
G3 with V2 gearbox according to TM design
G&G G2 gearbox V2
M249 with V2 gearbox according to TM design
M107 BARRETT from Snow wolf company
And others ...

Scylla - V2 is not compatible with these gearboxes:

KWA gearbox V2.5
S&T or Arcturus gearbox V2
Ares Amoeba gearbox V2
APS eSilver edge gearbox V2
Gearbox V2 with microswitch
And others ...

scylla-v2_banner

WIRING CONNECTION INTO THE FRONT:

TRIGGER SENSITIVITY
Thanks to the magnet adapter, it is possible to adjust the trigger sensitivity from the app.
The adapter can be used on standard V2 triggers.
For Jefftron triggers use this adapter.

FIRE MODES
This feature allows you to configure firing modes and assign the mode to the position of the firing switch on the weapon. The configurable firing modes available on the Scylla are:
- SAFE: no responding on the trigger pull.
- Semi: it fires a single shot per trigger pull.
- Binary trigger: it fires a single shot when the trigger is pulled and another single shot when it is released.
- Burst: gun shoot burst per trigger pull.
- Burst/Full: short trigger press fires burst, long trigger press makes auto fire.
- Full: gun makes auto fire until releasing trigger.

RATE OF FIRE REDUCTION
Whether you need to lower your cadence because your pitch has a RoF limit you are not HAVE or you need to diagnose a problem, Scylla eats you. With this feature, you can adjust your rate of fire between 40% and 100% via the app.

ACTIVE BRAKE
When you are using weak spring, inconsistency can occur when firing single shots, such as double burst fire in one trigger pull - the active brake solves this problem by braking the motor after each shot. You can set it in the application from 0 to 100%.

PISTON PRECOCKING
Piston precocking improves trigger response by leaving the piston in the rear position after each shot. This means that the motor does not have to retract and then release the piston each time it fires, it just releases the piston. It only works in SEMI mode. The intensity is set in the app from 0 to 80%.

ELECTRONIC FUSE
Protects the device in case of a short circuit on the wires to the motor.

LI-PO ALARM
Indication of low battery voltage. If the battery is discharged below a certain voltage, the weapon will emit an audible signal that the battery needs to be replaced. The app automatically detects the battery, or you can choose the correct battery type yourself.

STATISTICS
The app offers a lot of stats and indicators that allow you to get the most out of your weapon.
Among the most important are:

Weapon rate of fire
Total number of shots fired
Cycle time
Current during firing
Temperature of the mosfet and processor
Time how long the Scylla ran
Battery voltage

USE WITH BRUSHLESS MOTOR
Scylla can be used with brushless motor (Warhead, Option No. 1, etc.). Activate the function "Brushless motor" in the Leviathan & Scylla app and use all available options without any worries.

FEATURES
Easy installation into the mechabox.
Wrapped in lacquer to protect the device against water damage.
You can use a mechanical trigger stop with the Scylla, however it does not have to be used.

PACKING
Scylla - V2 drop-in electronic module with wiring to stock with T-plug connector
Adapter with magnet for standard trigger
Screw for securing device in the gearbox
2pcs wires holders
5x Scylla sticker
Dog Tag keychain
Online manual in English

Scylla-v2-package

WIRING CONNECTION INTO THE FRONT:

TECHNICAL SPECIFICATIONS
- You can used standart V2 trigger (For Jefftron triggers use this adapter)
- You can use a mechanical trigger stop with the Scylla, however it does not have to be used (electronic SAFE)
- Easy installation inside the gearbox version 2, compatible with Tokyo Marui standard
- You can use mechanical trigger block with scylla, but it works without it too (electronic safe)
- Trigger adapter with magnet is compatible with any standard trigger (could not be used with Leviathan trigger)
- You don‘t have to modify the gearbox V2 from the Krytac or G&G G2 company. Simply cut the Scylla bottom board
- It uses optical sensor actuated by sector gear cam for perfect semi and burst fire timing

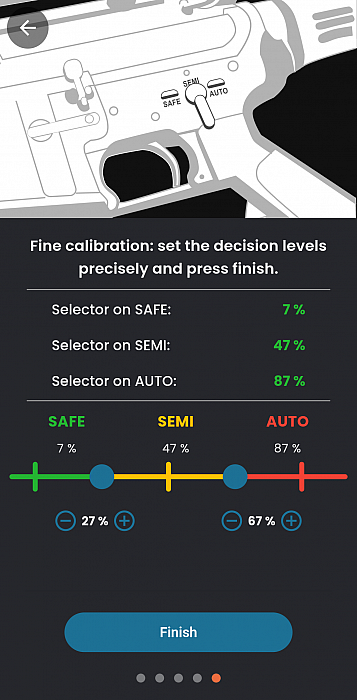

- For fire selector position is used optical sensor too - it works with sticker provided with the Scylla
- For the trigger there is hall sensor and magnet is placed in the trigger adapter (included in the box), so you can adjust trigger sensitivity conveniently from the app
- Thanks to advanced electronics, Scylla - V2 can be used with any common gearbox upgrade and gun rate of fire including DSG
- Completely made wiring allows the fastest and the easiest installation into the gun, it is long enough for all kind of weapons with battery placed in the stock. No soldering is needed
- The wire length between the gearbox and the battery connector is 270mm
- There are high quality power wires 1,5 qmm (AWG16) with thin and hard teflon insulation (PTFE) and signal blue wire 0.34 qmm (AWG22) with teflon insulation too
- Power wires outer diameter is only 2,10 mm and blue wire 1,30 mm
- Electronic fuse protects device during motor short circuit
- Statistics screen shows shooting output with cycle timing, motor current consumption, rate of fire and temperatures. It allows you to do fine-tune gearbox upgrade
- Application shows actual battery voltage value
- Update function fixes bugs and adds new features to the device
- Total counter saves every shot during the device lifetime
- Error log shows errors made during the device life also can be erased by the user
- For better security wireless connection can be disabled by the selector switch (can be deactivated)
- Scylla monitors current, voltage and temperature to avoid any damage when something goes wrong.
- Motor vibrates and beeps as feedback for user
- Programmed settings are saved in the Scylla memory immediately after their change, so you can immediately test it and settings aren't lost when is battery disconnected or lost connection with smartphone
- New functions are for free for every user via online update function
- For right pre-cocking function is necessary to have in the gearbox functional anti reverse latch. WARNING: it increases wear and tear on the gearbox.
- Specified for common batteries up to 13V (Ni-xx 8.4 - 9,6V, lipol 7.4 - 11.1V)
- Device increases gun rate of fire and battery holds longer, than with basic wiring
- With active braking ON piston isn't partially stretched, spring is fully released, parts in mechabox aren't under strain and nozzle locks hop-up chamber in greater part (depends on ROF)
- In weapons with very high rate of fire (ROF) active brake solves multiple shots in semi mode
- The braking effect is the most powerful with high torque motor. Note: Lower braking intensity spares the motor coils.

SAFETY WARNING:
- Installation of this device into the gearbox requires advanced technician skills!
- Please read these manual before installing your device to prevent any damage.
- Short circuit or incorrectly connected battery will cause immediate damage to the device which is not covered by the warranty. It can lead to fire or even battery explosion.
- Disconnect battery, when you aren't using the gun! Otherwise, you will fully discharge the battery. Because the device drains small amount of current from the battery all the time.
- Do not connect battery when gun pointing towards you, another person or an animal.
- Do not modify, repair and put into any kind of liquids or thermal shock the Scylla - V2.
